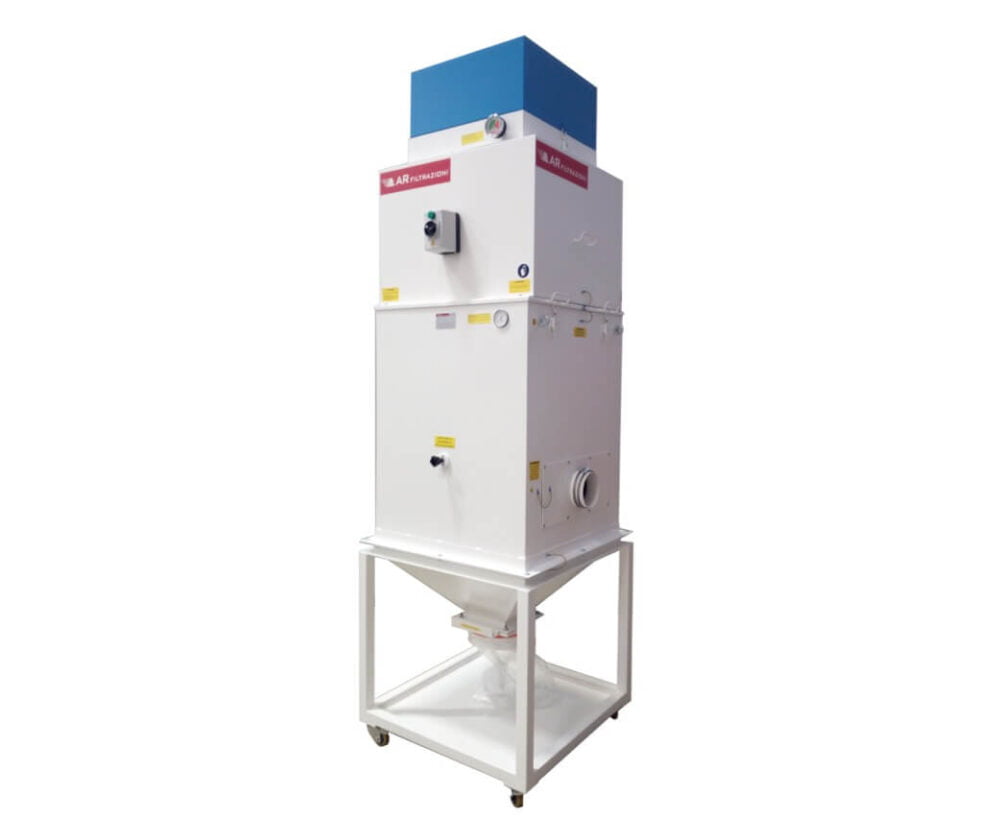

ART/ ARTU Series

Request Price Now

The ARTU’ M series is suitable for the suction and purification of dust generated by dry machining processes. With its dedicated hopper, it is also suitable for processing graphite.

Technical Data

  • - Air flow rate from 700 - 3800 m3/h
  • - Power from 0.55 - 4.0 kW
  • - Noise level from 65 - 79 dB
  • - Efficiency EN 779 – 95 % (0,4 μ) - EN 1822 - 99,995%
    (0.15 μ) high-very high efficiency
  • - Pollutant - dry processing, dust of graphite, plastic etc.
  • - Can also be equipped with hopper, self supporting suction arm and pneumatic shaker.

Description

Special pockets retain the dust on the external surface. A cleaning system by means of a manual mechanical shaker keeps the suction and filtration efficiency constant. An electro- pneumatically controlled cleaning system can be fitted on request.
Dust is collected in an easily removable container. The series can be equipped with a hopper and a collecting dust drawer, on request. The modular set-up of this series allows each model to be equipped with a High (EPA filter) or Very High (HEPA filter) Efficiency filtration stage in accordance to European standards EN 1822 suitable for the reduction of micro-dust and fumes, which is already standard in ARTU models. The ART series (excluding AR1T) is equipped with IE3 class motors with low energy consumption and an overload cutout switch. For specific requirements it is possible to equip the AR4T with a suitable impeller

X°STAGE

COLLECTING DUST DRAWER

1° STAGE POCKET FILTER

RIGID POCKET FILTER IN POLYPROPYLENE

2°STAGE HEPA FILTER

FINAL HIGH (EPA) OR VERY HIGH (HEPA) FILTRATION EFFICIENCY European Norm EN1822 Filtration efficiency up to 99,995% Particles with volume ≥ 0,15μ
