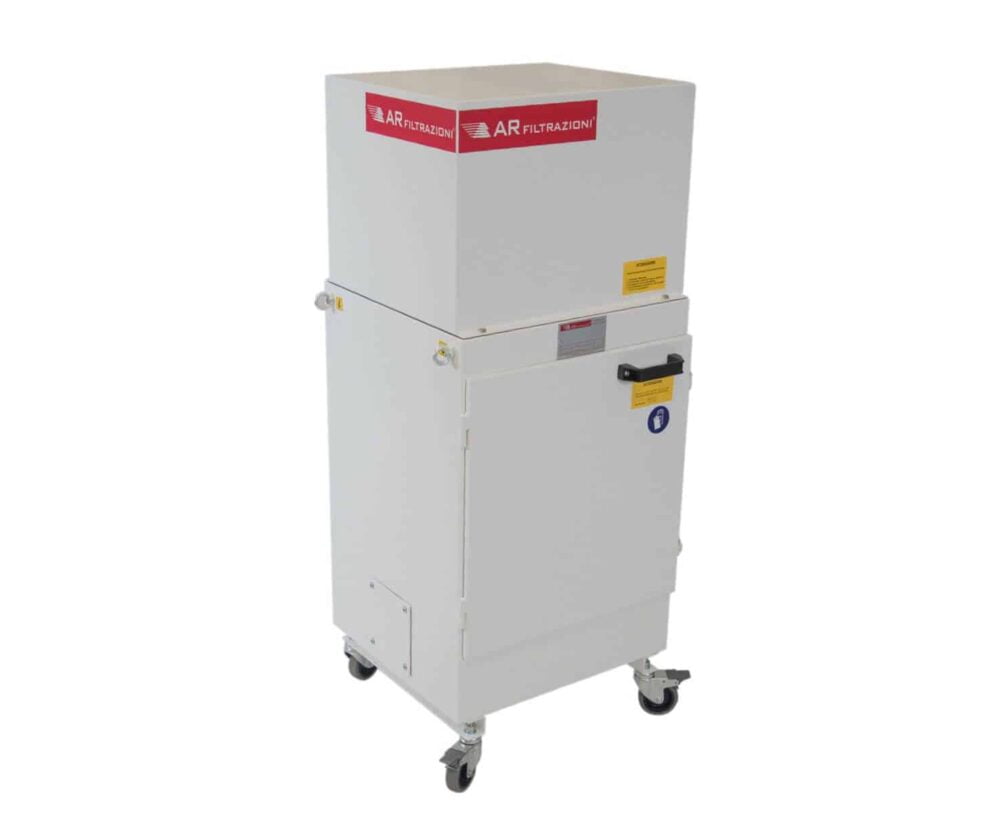

ARF Series

Request Price Now

The ARF series is suited to the extraction and purification of micro-dust and fumes generated during dry and wet machining applications. The extracted air passes through a metallic and then a synthetic filter, which retains the larger sized particles. It then passes through a very high efficiency filter (HEPA H13 filter), EN 1822 compliant, after which it is recycled perfectly purified.

With the optional active charcoal cell, the ARF purifier is also suited to the filtering of fumes, odours and gases released during machining with laser and electro erosion equipment.

Technical Data

  • - Air flow rate from 700 - 900 m3/h
  • - Power from 0.55 - 0.75 kW
  • - Noise level from 61 dB
  • - Weight from 72 - 82 Kg
  • - Efficiency EN 779 – 95 % (0,4 μ) - EN 1822 - 99,995%
    (0.15 μ) high-very high efficiency
  • - Pollutant - fumes, micro-dust, exhalations and odours
  • - Can be equipped with dust bag, active carbon cell, mini scrubber and self supporting suction arm

Description

The extracted air passes through a metallic and then a synthetic filter, which retain the larger sized particles. It then passes through a very high efficiency filter (HEPA H13 filter), EN 1822 compliant, after which it is recycled perfectly purified. The ARF series is suited to extracting and purifying micro-dust and fumes generated in dry and wet machining applications. The FA version is equipped with an active charcoal cell which eliminates gas, exhalations and odours. ARF 900 series purifiers are equipped with low energy consumption motors rated class IE3. The series is composed of two models with different power ratings: ARF 700 – ARF 900
Learn more at www.arfiltrazioni.it and www.mistcollector.com
Request Price Now

Technical Downloads
