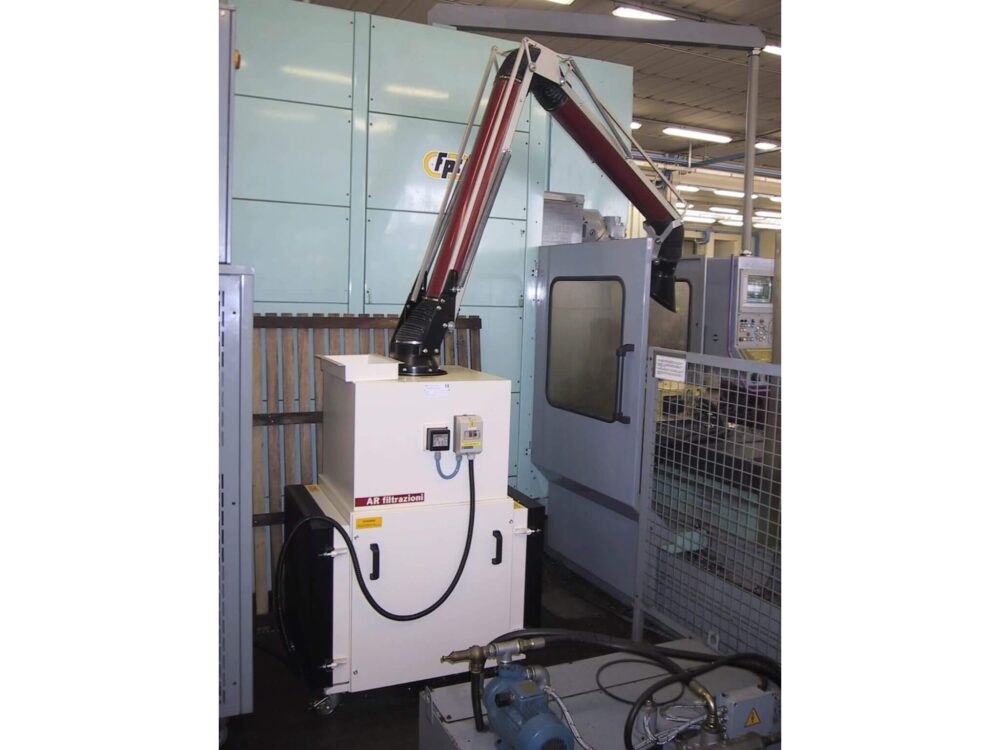

ARPX Series

Request Price Now

The ARPX Series is suitable for the extraction and purification of fumes, odours and dust generated in dry and wet processing. of constructive strength and maintenance management. The technical construction features give the purifier a versatility and robustness over time.

With a new layout of its componentry (motor, pocket filters and 2 high efficiency filters), the ARPX series represented a complete break from the centrifugal purification technology in vogue at the time.

Description

Indicated for the extraction, re-condensation and purification of the fumes, exhalations, odours and dusts generated during dry and wet machining, the series is ideal for purifying particles of variable sizes by simply using interchangeable filters of different filtration efficiencies. The first purifier designed and manufactured by AR FILTRAZIONI, aimed at satisfying the requirements of the market in terms of robust construction and ease of maintenance, to stand out from the competition it had to be MULTIFUNCTONAL AND ROBUST to satisfy the varying needs of a mechanical engineering workshop. With a new layout of its componentry (motor, pocket filters and 2 high efficiency filters), the ARPX series represented a complete break from the centrifugal purification technology in vogue at the time. The young founders of AR FILTRAZIONI had understood that centrifuges (which still account for the majority of commercial oily mist purifiers) had too many problems: malfunction due to wear of the centrifuge motor bearings, vibration under heavy load. Quite apart from maintenance, which was then and still is very complex, since the purifier must be uninstalled for routine maintenance, which means long downtimes (just try opening a barrel of special fluid waste, positioned horizontally or, even worse, vertically with its opening at the bottom!). In contrast, with the ARPX series you need only open a hatch to remove and replace the pocket filters. Two high efficiency filters are located at the sides and fit under pressure. The series is composed of 2 sub-series, with flow rates from 2000 to 3200 m³/h. The ARPX series, which has been on the market for 15 years, and is completely compliant with current legislation, fully satisfies the requirements of intense production: it is compact, robust, efficient, needing little maintenance which is quick and easy when necessary, and is regulated by a visual filter clogging indicator. Equipped with a dual high and very high efficiency filtration stage, EN 1822 compliant, it ensures filtration of up to 99.995% of particles > 0.15 µ (note that the mean diameter of fumes particles is always < 1 µ).

1st STAGE

PREFILTRATION
European standards EN779 Filtration efficiency> 95% - Particles with volume 3 μ

2nd STAGE

FILTRATION WITH COALESCENCE EFFECT
European standards EN779 Filtration efficiency up to 95% - Particles with volume 0.4 μ

3rd DOUBLE STAGE

DIFFUSER / NOISE REDUCER

4th DOUBLE STAGE

FINAL PANEL FILTERS IN POLYURETHANE
Learn more at www.arfiltrazioni.it and www.mistcollector.com
