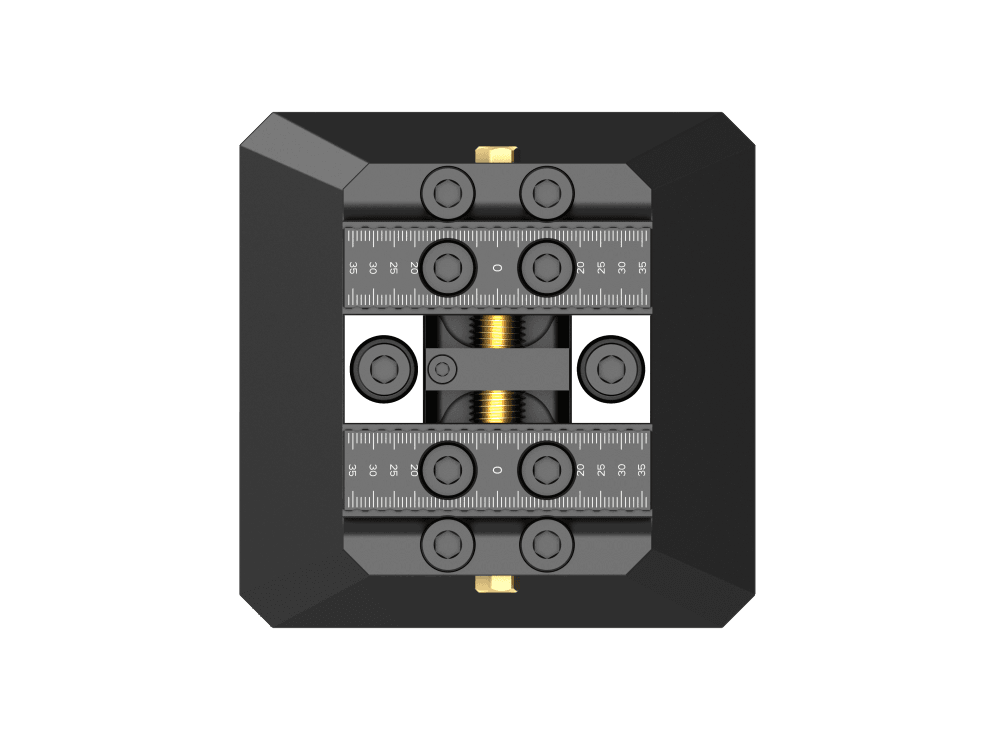

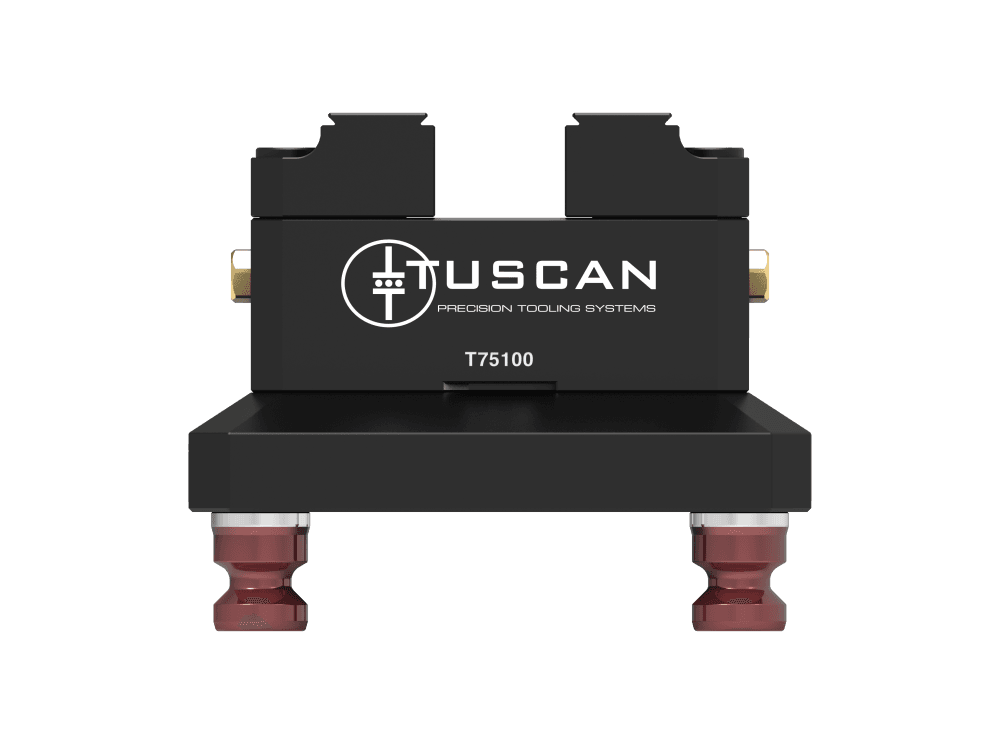

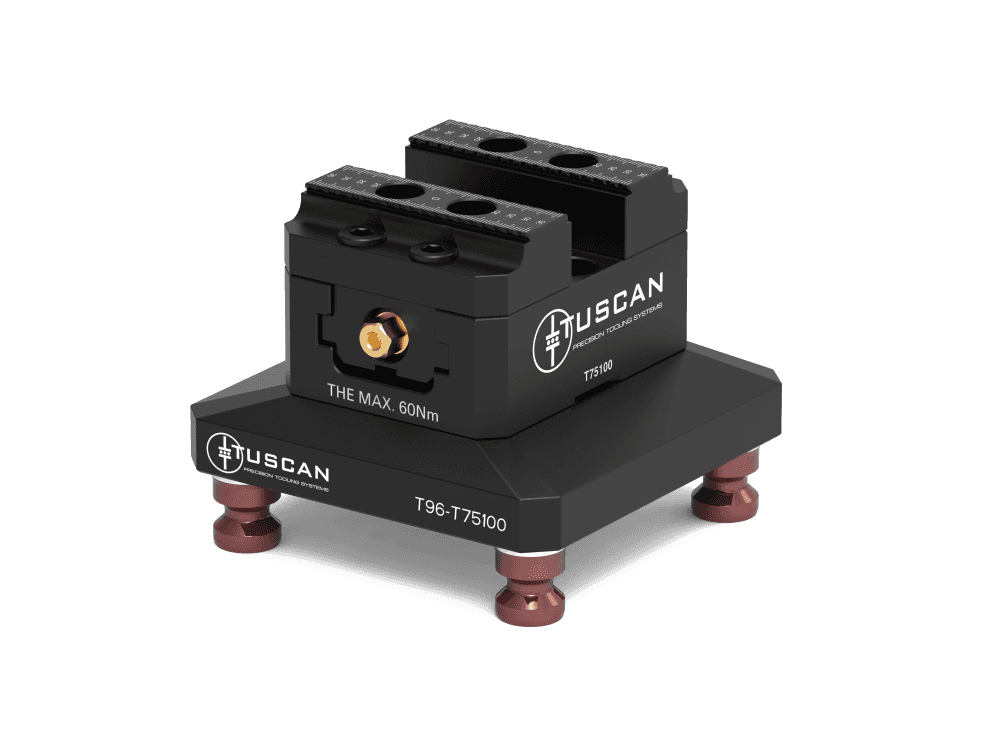

Tuscan 5-Axis Self-Centring Vices for Precision Machining

Unlock the full potential of your machining operations with Tuscan 5-Axis Self-Centring Vices, designed to deliver exceptional precision, repeatability, and versatility at a fraction of the cost of premium alternatives. These vices are engineered to meet the needs of modern manufacturers looking for high-quality, robust, and affordable solutions for 5-axis machining, CNC milling, and multi-axis operations.

Key Features of Tuscan 5-Axis Self-Centring Vices:

Superior Precision and Repeatability

Tuscan 5-Axis Self-Centring Vices provide precise clamping, ensuring that parts are held securely and accurately throughout the machining process. The self-centring mechanism guarantees that your workpiece is always positioned with optimal precision, reducing setup time and minimising the chance of errors.

The repeatable clamping system is ideal for high-volume production runs where consistency and part quality are crucial, helping you achieve the same results from the first part to the last.

45-Degree Dovetail Angle for Enhanced Clamping

One of the standout features of Tuscan 5-Axis vices is the 45-degree dovetail angle built into the jaws. This clever design improves the grip on parts, especially during 5-axis machining operations where angular positioning is crucial. The dovetail angle ensures that the workpiece is securely held, even under higher cutting forces, which results in improved clamping stability and reduced chance of slippage during machining.

The dovetail design enhances clamping force by increasing the surface contact between the vice jaws and the workpiece, making it ideal for parts that require precision clamping in multi-axis machining.

Durable and Robust Construction

Constructed from high-quality steel, the Tuscan 5-Axis vices offer superior strength and durability. Unlike some alternatives, these vices are built to withstand heavy-duty machining operations, providing a long service life even in demanding production environments.

The robust design ensures that your vices will remain accurate over time, with minimal wear or degradation, reducing maintenance costs and downtime.

Cost-Effective Solution for Precision Clamping

Tuscan 5-Axis Self-Centring Vices offer the same high-quality clamping performance you would expect from premium systems, but at a more affordable price point. By choosing Tuscan vices, you get the reliability and precision you need for your machining operations without the hefty price tag of other well-known brands.

With Tuscan vices, you can save significantly on your initial investment, while still maintaining the accuracy and efficiency that are essential for your production process.

Optimised for 5-Axis Machining

Ideal for 5-axis machining centres, the Tuscan 5-Axis vices provide the flexibility needed for complex, multi-sided parts. Their self-centring design ensures that the workpiece is held firmly in place, allowing for accurate cuts from every angle and improving your machining capabilities across multiple operations.

These vices are perfectly suited for both small and large parts, offering clamping solutions for a wide variety of geometries and sizes.

Quick Setup and Efficient Clamping

The quick clamping mechanism on Tuscan 5-Axis vices allows for rapid setup times, making them ideal for shops with high turnover or those working on multi-part production runs. The self-centring feature also means less time spent aligning parts, leading to greater overall efficiency in your workflow.

Versatile and Flexible Workholding

Whether you are working with aluminium, steel, or exotic materials, Tuscan 5-Axis Self-Centring Vices are adaptable to a wide range of applications. Their versatility makes them a perfect fit for industries like aerospace, automotive, medical, and toolmaking, where precision and flexibility are paramount.

Easy Integration with Existing Workholding Systems

Tuscan vices are designed to be fully compatible with the 52 | 96 zero-point clamping system, making it easy to integrate them into your existing workholding setup. Whether you are upgrading your current equipment or expanding your capabilities, Tuscan 5-Axis vices provide seamless integration, saving you time and effort during the setup process.

Why Choose Tuscan 5-Axis Self-Centring Vices?

Affordable Precision: Get premium self-centring clamping performance at a fraction of the price of high-end brands, without sacrificing quality or durability.

45-Degree Dovetail Design: The unique dovetail angle enhances clamping force and ensures a secure grip, making these vices ideal for 5-axis machining and complex geometries.

Quick Setup: Minimise downtime with rapid clamping and easy part changeovers, ensuring efficient production even in high-demand environments.

Robust and Long-lasting: Built from high-quality steel, these vices are designed for heavy-duty use, providing you with long-term reliability and reducing maintenance costs.

Versatile for Multiple Applications: Ideal for 5-axis CNC machining, multi-sided machining, and complex part geometries.

Applications of Tuscan 5-Axis Self-Centring Vices:

CNC Milling and Machining Centres: Perfect for 5-axis and multi-axis machining, where high-precision part holding is crucial.

Aerospace and Automotive: Handle complex geometries and tight tolerances with ease.

Toolmaking and Prototyping: Quickly adapt to different workpieces and ensure repeatable accuracy in short-run and prototype production.

Medical Device Manufacturing: Achieve precision machining for medical components with secure, reliable clamping.

Maximise Your Machining Potential with Tuscan 5-Axis Self-Centring Vices

The Tuscan 5-Axis Self-Centring Vices offer an ideal balance of precision, reliability, and value. Whether you’re operating in a high-volume production environment or tackling complex, multi-sided parts, these vices deliver the accuracy and strength you need, without breaking the bank. With the added benefit of the 45-degree dovetail jaw design, you can ensure enhanced clamping force and secure part holding during challenging 5-axis operations.

Invest in Tuscan vices for your 5-axis machining applications and see the difference in both performance and cost-efficiency.

Tuscan Top Tooling for 52 | 96 Workholding Systems

Discover the versatility and precision of Tuscan Top Tooling, designed specifically for use with the 52 | 96 Zero Point workholding systems. Offering high-quality, durable components, Tuscan Top Tooling is the perfect choice for manufacturers who demand superior clamping, increased productivity, and flexible, repeatable setups. Whether you’re machining complex parts or transitioning between different operations, Tuscan top tooling enhances your workholding capabilities and streamlines your production process.

Key Features of Tuscan Top Tooling:

Premium Build Quality and Materials

Crafted from high-grade steel, Tuscan top tooling is built to withstand the rigours of high-performance machining. Unlike aluminium alternatives, steel offers enhanced durability, strength, and longevity, making it ideal for heavy-duty operations and high-volume production runs.

The robust steel construction of Tuscan top tooling provides a secure, stable foundation for your workholding setups, ensuring consistent results and minimal wear over time.

Full Compatibility with 5th Axis 52 | 96 Systems

Tuscan Top Tooling is fully compatible with 5th Axis workholding systems, featuring location studs that match the 52 | 96 Zero Point system. This allows seamless integration with existing setups, making it easy to swap or upgrade your tooling without any additional modification or complexity.

Designed with standardised locators, Tuscan tooling simplifies setup changes and ensures your system remains fully operational across different workholding configurations.

Enhanced Flexibility for Multi-Machine Operations

The interchangeable tooling design of the Tuscan 52 | 96 system enhances flexibility, enabling quick adaptation to different machining environments. Whether you are using a CNC milling machine, lathe, or other machines, the top tooling ensures quick, accurate part setups across a range of operations.

The ability to easily switch between fixtures allows manufacturers to perform multi-operation machining—milling, drilling, grinding—without re-clamping or repositioning parts, saving time and improving productivity.

Fast and Precise Setup Times

With Tuscan Top Tooling, you can expect quick setup times due to its easy-to-use, zero-point clamping system. This reduces downtime significantly, ensuring your machines spend more time producing and less time on re-fixturing and alignment.

The repeatable clamping system ensures that parts are always aligned with perfect accuracy every time they are clamped, delivering high-quality, consistent results from the first part to the last.

Customisable Options for Every Application

Whether you’re working with small batch productions, high-precision prototype machining, or mass production, Tuscan Top Tooling offers customisable solutions to meet the unique demands of your operations.

With a variety of mounting options, fixturing configurations, and compatible accessories, Tuscan top tooling can be adapted to suit a wide range of part sizes, geometries, and machining requirements.

Improved Efficiency & Cost-Effectiveness

By reducing set-up times, increasing machine uptime, and improving part accuracy, Tuscan Top Tooling maximises the efficiency of your manufacturing process. This leads to increased throughput and a significant reduction in scrap rates, which translates into a better return on investment (ROI) over time.

The steel construction ensures long-lasting performance, providing cost savings over time by reducing the need for frequent replacements or repairs commonly associated with aluminium-based systems.

Compatible with Automation Systems

Tuscan Top Tooling is designed for integration with automated systems, including robotic arms and CNC automation. This compatibility supports advanced manufacturing automation, reducing the need for manual labour and increasing precision in high-volume operations.

Why Choose Tuscan Top Tooling?

Durability and Strength: With its steel-based construction, Tuscan Top Tooling outperforms aluminium systems in demanding environments, offering increased durability, minimal wear, and longer service life.

Efficient Production: Thanks to quick-change capability and repeatable clamping, Tuscan Top Tooling helps reduce setup time and minimise human error, boosting overall production efficiency.

Complete Compatibility: Works seamlessly with 5th Axis 52 | 96 fixtures and accessories, offering compatibility with your existing workholding system.

Cost-Effective Long-Term: While the initial investment may be higher, the durability, precision, and reduced maintenance requirements of Tuscan top tooling deliver substantial long-term savings.

Applications of Tuscan Top Tooling:

CNC Machining: Ideal for multi-axis CNC machines, where precision and repeatability are critical.

Prototyping: The fast setup and flexibility make Tuscan top tooling an excellent choice for rapid prototyping.

Mass Production: With its strong, durable build, it is ideal for high-volume machining where uptime is paramount.

Automation: Compatible with robotic loading/unloading systems, helping streamline automated production lines.

Get the Most Out of Your 52 | 96 Workholding System with Tuscan Top Tooling

Enhance the performance of your workholding setup and achieve higher productivity with Tuscan Top Tooling. Whether you’re machining high-precision parts, conducting multi-operation processes, or integrating automation, this versatile tooling solution is built to meet the demands of modern manufacturing. Improve your setup times, reduce waste, and boost machine uptime by choosing Tuscan top tooling for your 52 | 96 Zero Point workholding system.
