Shop
Spindle Tooling
Tuscan ER Collets & Accessories

Tuscan ER Collets & Accessories

Tuscan ER collets & Accessories, 5 micron accuracy as standard – the greater the accuracy, the better the outcome. Collets are available in ER8, ER11, ER16, ER20, ER25, ER32 and ER40 forms.

Your filters

Categories

Collet Type

Filter products

Categories

Collet Type

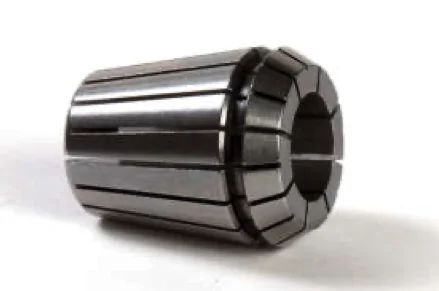

Tuscan ER20 Ultra-Precision Collets (5 Micron)

Tuscan ER20 Ultra-Precision Collets (5 Micron)

SKU: N/A
  • ER20 Collets
  • Range 1-13mm
  • 5 micron Runout
£12.50 – £17.50  ex vat Select options View more info
Tuscan ER11 Ultra-Precision Collets (5 Micron)

Tuscan ER11 Ultra-Precision Collets (5 Micron)

SKU: N/A
  • ER11 Collets
  • Range 1-7mm
  • 5 micron Runout
£12.00 – £18.50  ex vat Select options View more info
Tuscan ER16 Ultra-Precision Collets (5 Micron)

Tuscan ER16 Ultra-Precision Collets (5 Micron)

SKU: N/A
  • ER16 Collets
  • Range 1-10mm
  • 5 micron Runout
£12.00 – £17.50  ex vat Select options View more info
Tuscan ER32 Ultra-Precision Collets (5 Micron)

Tuscan ER32 Ultra-Precision Collets (5 Micron)

SKU: N/A
  • ER32 Collets
  • Range 3-20mm
  • 5 micron Runout
Request Price View more info
Tuscan ER40 Ultra-Precision Collets (5 Micron)

Tuscan ER40 Ultra-Precision Collets (5 Micron)

SKU: N/A
  • ER40 Collets
  • Range 3-30mm
  • 5 micron Runout
Request Price View more info
Tuscan ER25 Ultra-Precision Collets (5 Micron)

Tuscan ER25 Ultra-Precision Collets (5 Micron)

SKU: N/A
  • ER25 Collets
  • Range 1-16mm
  • 5 micron Runout
Request Price View more info
Tuscan ER8 Ultra-Precision Collets (5 Micron)

Tuscan ER8 Ultra-Precision Collets (5 Micron)

SKU: N/A
  • ER8 Collets
  • Range 1-5mm
  • 5 micron Runout
£17.50 – £20.00  ex vat Select options View more info

Tuscan ER collets have 5 micron accuracy as standard – the greater the accuracy, the better the outcome. Collets are available in ER8, ER11, ER16, ER20, ER25, ER32 and ER40 forms.
